Inverted Floor Conveyor

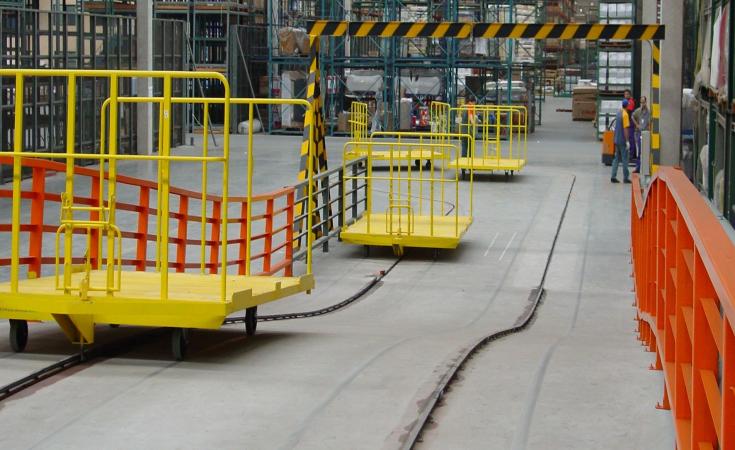

The Inverted Floor Conveyor is an innovative material handling solution designed for efficient and precise movement of products in various industrial settings, particularly manufacturing and assembly lines. Unlike traditional overhead conveyors, this system is installed beneath the floor, freeing up valuable workspace above and creating a cleaner, more organized environment. The inverted design ensures that the drive and support mechanisms are protected from debris, making it ideal for cleanroom environments and applications requiring high standards of cleanliness.

This conveyor system is engineered for smooth, reliable operation, with a focus on durability and low maintenance. Its modular construction allows for easy customization and expansion, making it adaptable to specific operational needs. Whether used for transporting parts between workstations or integrating with automated assembly lines, the inverted floor conveyor enhances productivity while optimizing space utilization.

Technical Specifications:

• Conveyor Type: Inverted Floor Conveyor

• Material: High-strength steel or stainless steel components with corrosion-resistant coatings

• Track Configuration: Modular, customizable to fit various layouts and floor plans

• Load Capacity: Up to 1000 kg (2204 lbs) per carrier, depending on application

• Conveyor Speed: Adjustable, typically ranging from 0.1 to 30 meters per minute

• Drive System: Electric motor with variable speed control, direct drive or chain-driven

• Power Supply: 220-240 V, 50/60 Hz, single-phase or three-phase

• Operating Temperature: -10°C to 60°C (14°F to 140°F)

• Safety Features:

• Emergency stop buttons

• Overload protection

• Floor-level sensors and safety guards

• Installation: Installed beneath the floor with options for straight, curved, and inclined tracks

• Maintenance: Low-maintenance design with easy access to components for inspection and servicing

• Compliance: Meets ISO 9001:2015 and CE standards for quality and safety

Applications:

1. Automotive Industry:

• Ideal for transporting vehicle components, such as engines, transmissions, and body parts, between workstations in assembly lines.

• Supports complex assembly processes with precise and controlled material movement.

2. Electronics Manufacturing:

• Suitable for cleanroom environments, ensuring the safe and clean transport of electronic components and devices.

• Enhances efficiency in high-tech manufacturing processes.

3. Appliance Manufacturing:

• Perfect for moving large appliances or components, such as washers, dryers, and refrigerators, through production and assembly stages.

• Reduces manual handling and improves workflow efficiency.

4. Aerospace Industry:

• Used for the precise movement of aircraft components, such as fuselage sections and wing assemblies, in production and assembly lines.

• Ensures safe and reliable transport in a controlled environment.

5. Pharmaceutical and Medical Device Manufacturing:

• Ideal for transporting sensitive and sterile products in cleanroom conditions, ensuring compliance with stringent hygiene standards.

• Supports automated production lines with reliable and contamination-free material handling.

Key Features:

• Space-Saving Design: Installed beneath the floor, the conveyor maximizes available workspace, creating a cleaner and more organized environment.

• Precision and Control: Provides smooth, precise movement of materials, ideal for complex assembly processes requiring accurate positioning.

• Durable and Reliable: Built with high-quality materials to ensure long-term performance with minimal maintenance.

• Customizable Layout: Modular design allows for easy customization and integration into existing facilities, accommodating various track configurations.

• Clean Operation: Inverted design protects the conveyor from debris, making it suitable for cleanroom environments and applications with high cleanliness standards.

• Safety First: Equipped with essential safety features to protect workers and prevent equipment damage, including emergency stops and floor-level sensors.

Conclusion:

The Inverted Floor Conveyor is a cutting-edge solution for industries seeking to optimize space, enhance productivity, and maintain a clean and organized work environment. Its innovative design, coupled with durable construction and precise control, makes it an excellent choice for manufacturing and assembly applications across a range of industries, from automotive and electronics to aerospace and pharmaceuticals. Whether you need to transport heavy components or delicate items, this conveyor system delivers reliable, efficient performance with the added benefit of maximizing workspace.
