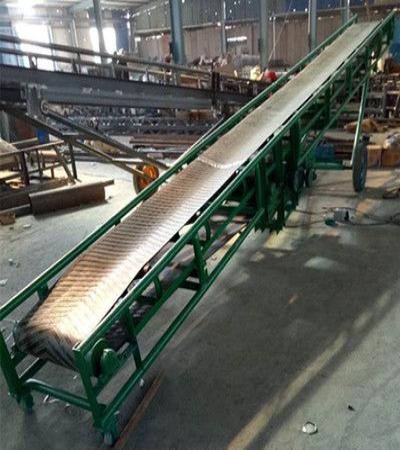

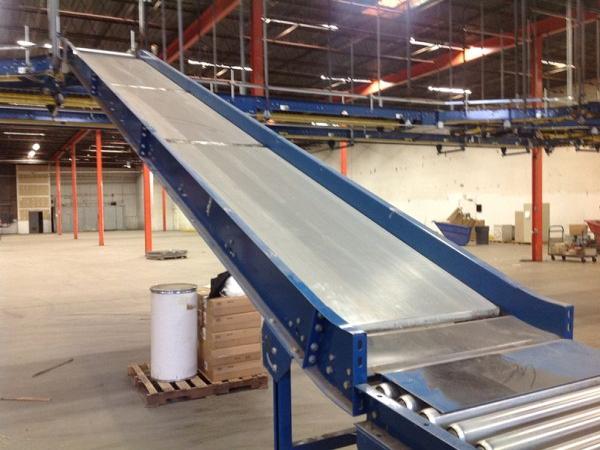

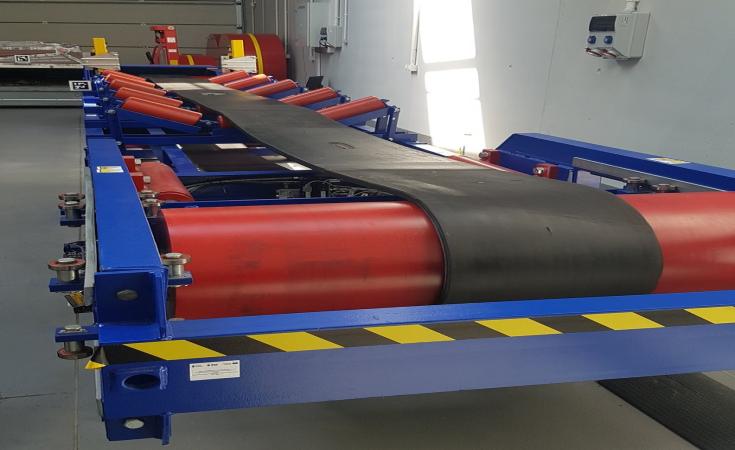

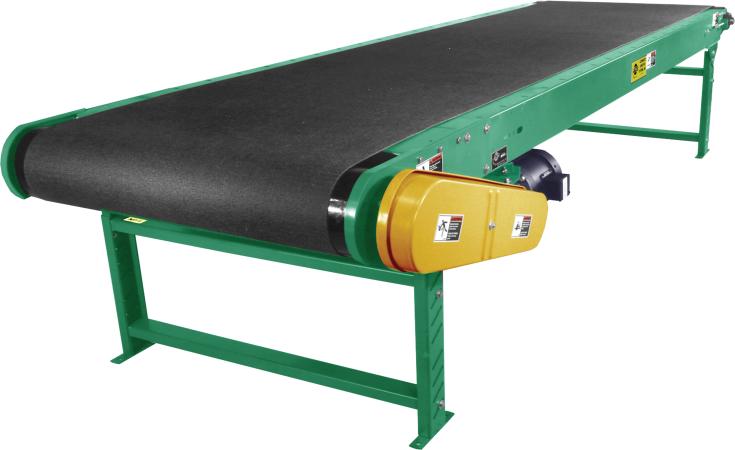

Belt Conveyor

The Belt Conveyor is a versatile and efficient material handling solution, designed to facilitate the smooth and continuous transport of various materials across industrial environments. With a focus on durability and ease of use, this conveyor system is suitable for a wide range of industries, including manufacturing, warehousing, food processing, and mining. It is engineered for seamless integration into existing production lines, making it an ideal choice for enhancing productivity and optimizing workflow.

Constructed with high-quality materials, the belt conveyor offers reliable performance and minimal maintenance, ensuring long-term operation even in demanding conditions. Its customizable features, such as belt width, length, and speed, allow for tailored solutions to meet specific operational needs.

Technical Specifications:

• Conveyor Type: Belt Conveyor

• Material: Heavy-duty rubber, PVC, or food-grade belts with reinforced fabric or steel cords

• Belt Width: Customizable from 300 mm to 2000 mm (12 inches to 79 inches)

• Belt Length: Customizable from 1 meter to 500 meters (3.3 feet to 1640 feet)

• Load Capacity: Up to 1000 kg/m (2204 lbs/m) depending on belt type and width

• Conveyor Speed: Adjustable, ranging from 0.1 to 5 meters per second

• Drive System: Electric motor with variable speed control

• Power Supply: 220-240 V, 50/60 Hz, single-phase or three-phase

• Operating Temperature: -20°C to 60°C (-4°F to 140°F)

• Inclination Angle: Up to 30° depending on material type and application

• Corrosion Resistance: Optional coatings for harsh environments, including galvanized or stainless steel frames

• Safety Features:

• Emergency stop buttons

• Belt alignment sensors

• Overload protection

• Installation: Floor-mounted, inclined, or overhead options available

• Maintenance: Low-maintenance design with easily accessible components for routine inspections and servicing

• Compliance: Meets ISO 9001:2015 and CE standards for quality and safety

Applications:

1. Manufacturing Facilities:

• Ideal for assembly lines, transporting components, and finished products between workstations.

• Supports automated production processes with reliable and consistent material flow.

2. Warehousing and Distribution Centers:

• Enhances inventory management by efficiently moving goods between storage areas and shipping docks.

• Reduces manual handling and improves loading/unloading times.

3. Food Processing Industry:

• Suitable for transporting raw ingredients, packaged goods, and finished products in a hygienic manner.

• Available with food-grade belts to meet sanitation standards.

4. Mining and Quarrying:

• Designed to handle heavy loads and abrasive materials, including ores, coal, and aggregates.

• Durable construction ensures long-term operation in harsh conditions.

5. Agriculture:

• Efficiently transports grains, seeds, and other agricultural products within processing plants or storage facilities.

• Reduces labor costs and minimizes product handling time.

Key Features:

• High Durability: Constructed with robust materials to withstand heavy-duty use in various environments.

• Customizable Design: Tailor the conveyor system to specific needs with options for belt width, length, speed, and inclination.

• Smooth Operation: Ensures consistent and reliable material flow with minimal noise and vibration.

• Energy Efficient: Designed for low power consumption while maintaining high performance.

• Safety First: Equipped with essential safety features to protect workers and prevent equipment damage.

• Versatile Applications: Suitable for a wide range of industries and material types, from lightweight packages to heavy bulk materials.

Conclusion:

The Belt Conveyor is an essential component for any operation requiring efficient and reliable material transport. Its customizable design, coupled with durable construction and advanced safety features, makes it a valuable investment for improving productivity across various industries. Whether in manufacturing, warehousing, food processing, mining, or agriculture, this conveyor system delivers consistent performance, reduced labor costs, and enhanced workflow efficiency.
