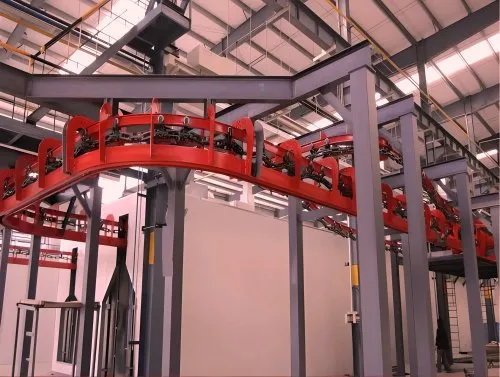

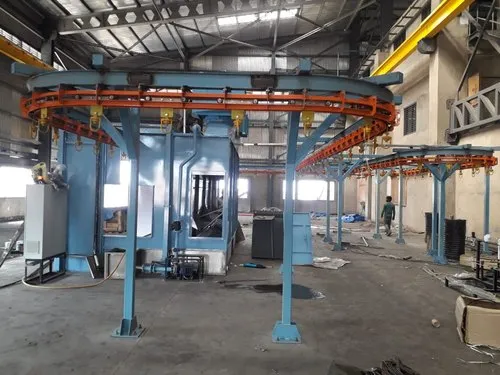

Enclosed Track Conveyor

The Enclosed Track Conveyor is an advanced material handling solution designed to provide smooth, efficient, and contamination-free transport of goods in a variety of industrial settings. This conveyor system features a fully enclosed track that protects the moving parts and the materials being conveyed from dust, dirt, and other contaminants, making it an ideal choice for clean environments as well as heavy-duty applications.

Crafted from high-quality materials, the enclosed track conveyor is engineered for durability and long-term reliability. Its design minimizes maintenance requirements, while its modular construction allows for easy customization and expansion to suit specific operational needs.

Technical Specifications:

• Conveyor Type: Enclosed Track Conveyor

• Material: High-strength steel with corrosion-resistant coating

• Track Type: Fully enclosed track to protect components and materials

• Load Capacity: Up to 250 kg (551 lbs) per trolley

• Conveyor Speed: Adjustable, ranging from 0.5 to 10 meters per minute

• Track Width: Standard 35 mm (1.38 inches), customizable upon request

• Track Length: Customizable from 1 meter to 200 meters (3.3 feet to 656 feet)

• Drive System: Electric motor with variable speed control

• Power Supply: 220-240 V, 50/60 Hz, single-phase or three-phase

• Operating Temperature: -10°C to 50°C (14°F to 122°F)

• Corrosion Resistance: Standard with optional enhanced coatings for harsh environments

• Safety Features:

• Built-in emergency stop

• Overload protection

• Anti-jamming sensors

• Installation: Overhead or floor-mounted installation options

• Maintenance: Low-maintenance design with easy access to key components

• Compliance: Meets ISO 9001:2015 and CE standards for quality and safety

Applications:

1. Food and Beverage Industry:

• Ideal for cleanroom environments, protecting products from contamination.

• Efficiently handles the transport of food items, beverages, and packaging materials.

2. Automotive Industry:

• Suitable for transporting car parts and assemblies in a controlled environment, ensuring protection from dust and debris.

• Enhances workflow in paint shops and assembly lines.

3. Pharmaceutical Industry:

• Perfect for conveying pharmaceutical products in a sterile environment, maintaining cleanliness and integrity.

• Supports automated processes in drug manufacturing and packaging.

4. Electronics Manufacturing:

• Provides a clean and secure transport system for sensitive electronic components, protecting them from static and contaminants.

• Ensures reliable handling in assembly and testing areas.

5. Textile Industry:

• Protects delicate fabrics and garments during transport through different stages of production.

• Reduces material handling time and minimizes contamination risks.

Key Features:

• Enclosed Design: The fully enclosed track protects both the conveyor components and the materials being transported from environmental contaminants.

• Modular Construction: Easily customizable and expandable to meet specific operational requirements.

• Smooth Operation: Engineered for quiet, vibration-free operation, promoting a better working environment.

• Energy Efficient: Designed for low power consumption while delivering high performance.

• Versatile: Adaptable to various industries, capable of handling a wide range of products with precision and care.

• Safety First: Equipped with essential safety features to ensure the protection of workers and equipment.

Conclusion:

The Enclosed Track Conveyor is an optimal solution for industries requiring clean, reliable, and efficient material handling. Its robust design, coupled with the protection offered by the enclosed track, ensures long-term durability and minimal maintenance, making it a valuable investment for any operation. Whether in food processing, automotive, pharmaceutical, electronics, or textile industries, this conveyor system enhances productivity while maintaining the integrity and safety of the materials being conveyed.
